Battery capacity: 75.0kWh

Peugeot e-Expert VAN

Back

Battery capacity: 75.0 kWh

Battery capacity usable: 68.0 kWh

Range, km Efficiency, kWh/100km AC Charging, km/h DC Charging, km/h
Official 327 21 24
Charge Power: 7.4 kW AC
 280
Fastcharge Power (max): 100 kW DC
Elektrum 260
Combined (winter)
 25
Combined (winter)
 27
The data are obtained as a result of the calculation, assuming that a 10% loss occurs during the charging process.
 267
Average charging speed up to 80% at 150 kW DC charging station

Energy efficiency indicators and comparison

General information

Car Body Small Passenger Van Acceleration 0-100 km/h 14.3 sec
Seats 9 Top Speed 130 km/h
Length 4956 mm Total Power 100 kW (136 PS)
Width 1920 mm Total Torque 260 Nm
Width with mirrors 1890 mm Weight Unladen (EU) 2131 kg
Height 1616 mm Gross Vehicle Weight (GVWR) 3100 kg
Tow Hitch Yes Cargo Volume 603 L
Roof Rails No Cargo Volume Max 3061 L

Maximum range, km

The maximum mileage depending on the mode is between 185 - 395 km

Route EV-database data Source: EV-database.org Elektrum summer test Elektrum winter test
City 285 - 395 - -
Highway 185 - 230 - -
Combined 230 - 295 - 260 Test data
Date: 16.03.2023.
Temperature: 0 ◦C
Climate: Cloudy, dry
Average consumption: 24.6 kWh/100km

The table shows the maximum mileage recorded by Elektrum experts during the test run in ECO mode and using A/C in the summer season and heating in the winter season. Actual maximum mileage depends on the driving speed, route, driving style, climatic and other conditions.

Energy consumption, kWh/km

Energy consumption combination depending on the mode is between 17.2 - 36.8 kWh/100km

Route EV-database data Source: EV-database.org Elektrum summer test Elektrum winter test
City 17.2 - 23.9 - 23.0 Test data
Date: 16.03.2023.
Temperature: +2 ◦C
Climate: Cloudy, dry
Highway 29.6 - 36.8 - 31.0 Test data
Date: 17.03.2023.
Temperature: 0 ◦C
Climate: Cloudy, wet
Combined 23.1 - 29.6 - 25.0 Test data
Date: 16.03.2023.
Temperature: 0 ◦C
Climate: Cloudy, dry


Average energy consumption at constant speed  Length of the test distance: 5 km

Speed, km/h Elektrum summer test, kWh/100km Elektrum winter test, kWh/100km
50 - 19.8
70 - 23.1
90 - 29.0

Length of test distance: 5 km

The table shows the energy consumption recorded on the electric vehicle's on-board computer during the test drive by Elektrum experts when driving in ECO mode and using A/C in the summer season and heating in the winter season. Actual energy consumption depends on the driving speed, route, driving style, climatic and other conditions.

Battery and charging

Total battery capacity

75.0 kWh

Usable battery capacity

68.0 kWh

Battery Type

Lithium-ion

 Architecture 400 V
Number of Cells 324 Bidirectional Charging (V2L) Not Available
Nominal Voltage 400 V Bidirectional Charging (V2H) Not Available
Pack Configuration 108s2p Bidirectional Charging (V2G) Not Available
Max. AC Charge Power  7.4 kW Max. DC Charge Power 100 kW


Information about alternating current (AC) charging types

Charging type Source: EV-database.org Charge Port Port Location Max. Power Time Rate

Wall Plug

 Type 2 Left Side - Rear 2.3 kW 35 hours 8 km/h

1-phase 16A

 3.7 kW 21 hours 45 minutes 12 km/h

1-phase 32A

 7.4 kW* 11 hours 24 km/h

3-phase 16A

 11 kW

21 hours 45 minutes

 12 km/h

3-phase 32A

 22 kW**

11 hours

 24 km/h

* Elektrum experts recommend: the most suitable home charger for this car from Elektrumveikals.lv: ABB Terra 7.4 kW Reminder: the charger is a serious consumer of electricity – make sure the housing is suitable for charging. If necessary, apply for a consultation!

** Limited by on-board charger, vehicle cannot charge faster.



Information about direct current (DC) charging

Charging Point Source: EV-database.org Charge Port Port Location Max. Power Maximum power provided by charge point. Avg. Power Average power provided by charge point over a session from 10% to 80%. Charge Time Time needed to charge from 10% to 80%. Charge Speed Average charging speed over a session from 10% to 80%.
50 kW DC CCS Left Side - Rear 50 kW 49 kW 1 hours 1 minutes 180 km/h
150 kW DC 100 kW 79 kW 38 minutes 290 km/h

Elektrum Drive direct current (DC) charge test:

Parameters 50kW DC charging The charging data shown in the table were obtained at the ElektrumDrive 50 kW DC charging station in Jūrmala, 4 Jomas Street. The calculations assume an average consumption of 25.0 kWh/100 km obtained during the Elektrum combined mode test drive. 150kW DC charging The charging data shown in the table were obtained at the ElektrumDrive 150 kW DC charging station in Rīga, 12 P.Brieža Street. The calculations assume an average consumption of 25.0 kWh/100 km obtained during the Elektrum combined mode test drive.
Average charging speed up to 80% 183 km/h 267 km/h
Average charging power (5%-80%) 46 kW 63 kW
Time to charge for 100 km 33 minutes 23 minutes
Charging time (5->50%) 42 minutes 28 minutes
Charging time (5->70%) 1 hour 1 minutes 41 minutes
Charging time (5->80%) 1 hour 11 minutes 49 minutes
Charging time (5->90%) 1 hour 29 minutes 1 hour 7 minutes
Charging time (5->95%) 1 hour 40 minutes 1 hour 37 minutes

Actual charging data depends on the capacity available at the station and the specifications of the electric vehicle’s built-in battery - mainly the capacity and temperature during charging.

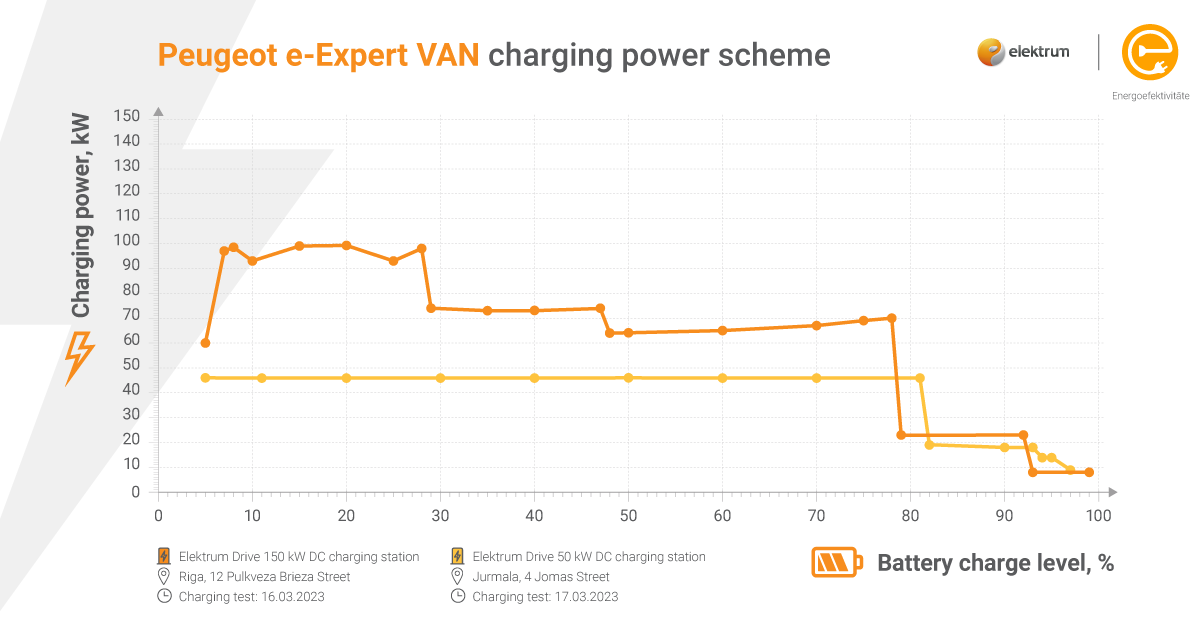

Charge curve

Map of test drive routes

Comparison of electric vehicles according to WLTP data

The WLTP (Worldwide Harmonised Light Vehicles Test Procedure) standard data for the specific model of the electric vehicle is used in the comparison calculation. The WLTP standard is based on worldwide driving data and includes driving situations in both urban and highway traffic. Actual maximum mileage, average consumption and acceleration depend on the specific model of electric vehicle and its equipment, chosen route, driving style, climatic and other conditions.
