Enyaq iV 80

Back

Battery capacity: 82.0kWh

Škoda Enyaq iV 80

Back

Battery capacity: 82.0 kWh

Battery capacity usable: 77.0 kWh

Range, km Efficiency, kWh/100km AC Charging, km/h DC Charging, km/h
Official 510 15 51
Charge Power: 11 kW AC
 530
Fastcharge Power (max): 135 kW DC
Elektrum 445
Combined (summer)
 16
Combined (summer)
 64
The data are obtained as a result of the calculation, assuming that a 10% loss occurs during the charging process.
 281
Average charging speed up to 80% at 50 kW DC charging station

Energy efficiency indicators and comparison

General information

Car Body SUV Acceleration 0-100 km/h 8.6 sec
Seats 5 Top Speed 160 km/h
Length 4649 mm Total Power 150 kW (204 PS)
Width 1879 mm Total Torque 310 Nm
Width with mirrors 2148 mm Weight Unladen (EU) 2090 kg
Height 1616 mm Gross Vehicle Weight (GVWR) 2616 kg
Tow Hitch Yes Cargo Volume 585 L
Roof Rails Yes Cargo Volume Max 1710 L

Maximum range, km

The maximum mileage depending on the season and mode is between 300 - 615 km

Route EV-database data Source: EV-database.org Elektrum summer test Elektrum winter test
City 415 - 615 - -
Highway 300 - 385 - -
Combined 355 - 485 445 Test data
Date: 10.08.2021.
Temperature: 22-24 ◦C
Climate: Clear, dry
Average consumption: 16.1 kWh/100km
 360 Test data
Date: 16.03.2022. - 17.03.2022.
Temperature: -1 to +5 ◦C
Climate: Clear, dry
Average consumption: 20.0 kWh/100km

The table shows the maximum mileage recorded by Elektrum experts during the test run in ECO mode and using A/C in the summer season and heating in the winter season. Actual maximum mileage depends on the driving speed, route, driving style, climatic and other conditions.

Energy consumption, kWh/km

Energy consumption depending on the season and mode is between 12.5 - 25.7 kWh/100km

Route EV-database data Source: EV-database.org Elektrum summer test Elektrum winter test
City 12.5 - 18.6 14.6 Test data
Date: 11.08.2021.
Temperature: 22-24 ◦C
Climate: Clear, dry		 18.9 Test data
Date: 17.03.2022.
Temperature: -2 ◦C
Climate: Clear, dry
Highway 20.0 - 25.7 17.8 Test data
Date: 10.08.2021.
Temperature: 22-24 ◦C
Climate: Cloudy, dry		 22.6 Test data
Date: 16.03.2022.
Temperature: 5 ◦C
Climate: Clear, dry
Combined 15.9 - 21.7 15.4 Test data
Date: 10.08.2021.
Temperature: 22-24 ◦C
Climate: Clear, dry		 20.2 Test data
Date: 17.03.2022.
Temperature: -1 ◦C
Climate: Clear, dry


Average energy consumption at constant speed  Length of the test distance: 5 km

Speed, km/h

Elektrum summer test, kWh/100km

 Elektrum winter test, kWh/100km
50 10.4 15.9
70 14.5 19.7
90 17.4 23.2

The table shows the energy consumption recorded on the electric vehicle's on-board computer during the test drive by Elektrum experts when driving in ECO mode and using A/C in the summer season and heating in the winter season. Actual energy consumption depends on the driving speed, route, driving style, climatic and other conditions.

Battery and charging

Total battery capacity

82.0 kWh

Usable battery capacity

77.0 kWh

Battery Type

Lithium-ion

 Architecture 400 V
Number of Cells 288 Bidirectional Charging (V2L) Not Available
Nominal Voltage 350 V Bidirectional Charging (V2H) Not Available
Pack Configuration 96s3p Bidirectional Charging (V2G) Not Available
Max. AC Charge Power 11 kW Max. DC Charge Power 135 kW


Information about alternating current (AC) charging types

Charging type Source: EV-database.org Charge Port Port Location Max. Power Time Rate

Wall Plug

 Type 2

Right Side - Rear

 2.3 kW 39 hours 30 minutes 11 km/h

1-phase 16A

 3.7 kW 24 hours 30 minutes 17 km/h

1-phase 32A

 7.4 kW 12 hours 15 minutes 34 km/h

3-phase 16A

 11 kW*

8 hours 15 minutes

 51 km/h

3-phase 32A

 22 kW** 8 hours 15 minutes 51 km/h

* Elektrum experts recommend: the most suitable home charger for this car from Elektrumveikals.lv: ABB Terra, 11 kW Reminder: the charger is a serious consumer of electricity – make sure the housing is suitable for charging. If necessary, apply for a consultation!

** Limited by on-board charger, vehicle cannot charge faster.



Information about direct current (DC) charging

Charging Point Source: EV-database.org Charge Port Port Location Max. Power Maximum power provided by charge point. Avg. Power Average power provided by charge point over a session from 10% to 80%. Charge Time Time needed to charge from 10% to 80%. Charge Speed Average charging speed over a session from 10% to 80%.
50 kW DC CCS Right Side - Rear 49 kW 48 kW 1 hours 11 minutes 240 km/h
150 kW DC 135 kW 103 kW 33 minutes 530 km/h

Elektrum Drive direct current (DC) charging test results

Parameters 50kW DC charging The charging data shown in the table were obtained at the ElektrumDrive 50 kW DC charging station in Jūrmala, 4 Jomas Street. The calculations assume an average consumption of 16.1 kWh/100 km obtained during the Elektrum combined mode test drive.
Average charging speed up to 80% 281 km/h
Average charging power (5%-80%) 46 kW
Time to charge for 100 km 21 minutes
Charging time (5->50%) 45 minutes
Charging time (5->70%) 1 hours 4 minutes
Charging time (5->80%) 1 hours 14 minutes
Charging time (5->90%) 1 hours 24 minutes
Charging time (5->95%) 1 hours 31 minutes

Actual charging data depends on the capacity available at the station and the specifications of the electric vehicle’s built-in battery - mainly the capacity and temperature during charging.

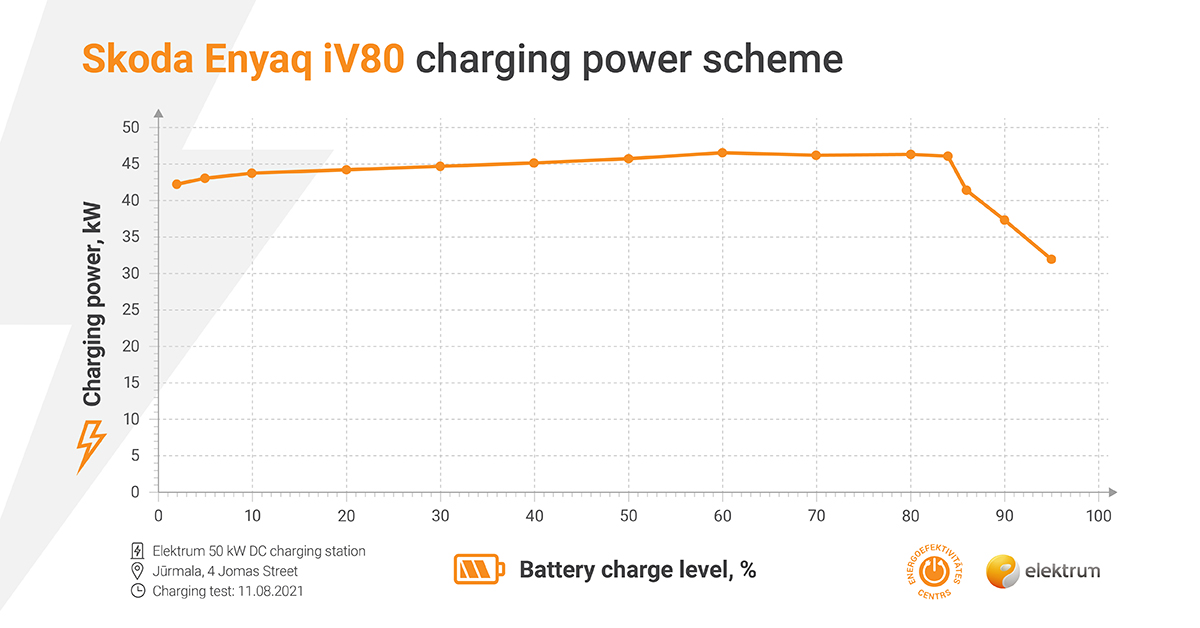

Charge curve

Map of test drive routes

Comparison of electric vehicles according to WLTP data

The WLTP (Worldwide Harmonised Light Vehicles Test Procedure) standard data for the specific model of the electric vehicle is used in the comparison calculation. The WLTP standard is based on worldwide driving data and includes driving situations in both urban and highway traffic. Actual maximum mileage, average consumption and acceleration depend on the specific model of electric vehicle and its equipment, chosen route, driving style, climatic and other conditions.
