446Test data
Date: 29.09.2021.
Temperature: 12-14 ◦C
Climate: Clear, dry
Average consumption: 16.6 kWh/100km
351Test data
Date: 25.01.2022. - 26.01.2022.
Temperature: -2 to +2 ◦C
Climate: Clear, wet
Average consumption: 21.6 kWh/100km
The table shows the maximum mileage recorded by Elektrum experts during the test run in ECO mode and using A/C in the summer season and heating in the winter season. Actual maximum mileage depends on the driving speed, route, driving style, climatic and other conditions.
Energy consumption, kWh/km
Energy consumption depending on the season and mode is between 12.8 - 26.1 kWh/100km
15.6Test data
Date: 27.09.2021.
Temperature: 18-19 ◦C
Climate: Cloudy, dry
20.6Test data
Date: 26.01.2022.
Temperature: -2 ◦C
Climate: Clear, wet
Highway
20.5 - 26.1
18.3Test data
Date: 29.09.2021.
Temperature: 12-14 ◦C
Climate: Clear, dry
23.5Test data
Date: 27.01.2022.
Temperature: 2 ◦C
Climate: Cloudy, wet
Combined
16.4 - 22.0
16.1Test data
Date: 29.09.2021.
Temperature: 12-14 ◦C
Climate: Clear, dry
20.4Test data
Date: 25.01.2022.
Temperature: 2 ◦C
Climate: Cloudy, wet
Average energy consumption at constant speed Length of the test distance: 5 km
Speed, km/h
Elektrum summer test, kWh/100km
Elektrum winter test, kWh/100km
50
11.8
16.3
70
14.9
19.5
90
19.3
23.4
The table shows the energy consumption recorded on the electric vehicle's on-board computer during the test drive by Elektrum experts when driving in ECO mode and using A/C in the summer season and heating in the winter season. Actual energy consumption depends on the driving speed, route, driving style, climatic and other conditions.
Battery and charging
Total battery capacity
82.0 kWh
Usable battery capacity
77.0 kWh
Battery Type
Lithium-ion
Architecture
400 V
Number of Cells
288
Bidirectional Charging (V2L)
Not Available
Nominal Voltage
350 V
Bidirectional Charging (V2H)
Not Available
Pack Configuration
96s3p
Bidirectional Charging (V2G)
Not Available
Max. AC Charge Power
11 kW
Max. DC Charge Power
135 kW
Information about alternating current (AC) charging types
* Elektrum experts recommend: the most suitable home charger for this car from Elektrumveikals.lv: ABB Terra, 11 kWReminder: the charger is a serious consumer of electricity – make sure the housing is suitable for charging. If necessary, apply for a consultation!
** Limited by on-board charger, vehicle cannot charge faster.
Avg. PowerAverage power provided by charge point over a session from 10% to 80%.
Charge TimeTime needed to charge from 10% to 80%.
Charge SpeedAverage charging speed over a session from 10% to 80%.
50 kW DC
CCS
Right Side - Rear
49 kW
48 kW
1 hours 11 minutes
240 km/h
150 kW DC
135 kW
103 kW
33 minutes
520 km/h
ElektrumDrive direct current (DC) charging test results
Parameters
50kW DC chargingThe charging data shown in the table were obtained at the ElektrumDrive 50 kW DC charging station in Jūrmala, 4 Jomas Street. The calculations assume an average consumption of 16.6 kWh/100 km obtained during the Elektrum combined mode test drive.
Average charging speed up to 80%
273 km/h
Average charging power (5%-80%)
46 kW
Time to charge for 100 km
22 minutes
Charging time (5->50%)
45 minutes
Charging time (5->70%)
1 hours 3 minutes
Charging time (5->80%)
1 hours 13 minutes
Charging time (5->90%)
1 hours 23 minutes
Charging time (5->95%)
1 hours 30 minutes
Actual charging data depends on the capacity available at the station and the specifications of the electric vehicle’s built-in battery - mainly the capacity and temperature during charging.

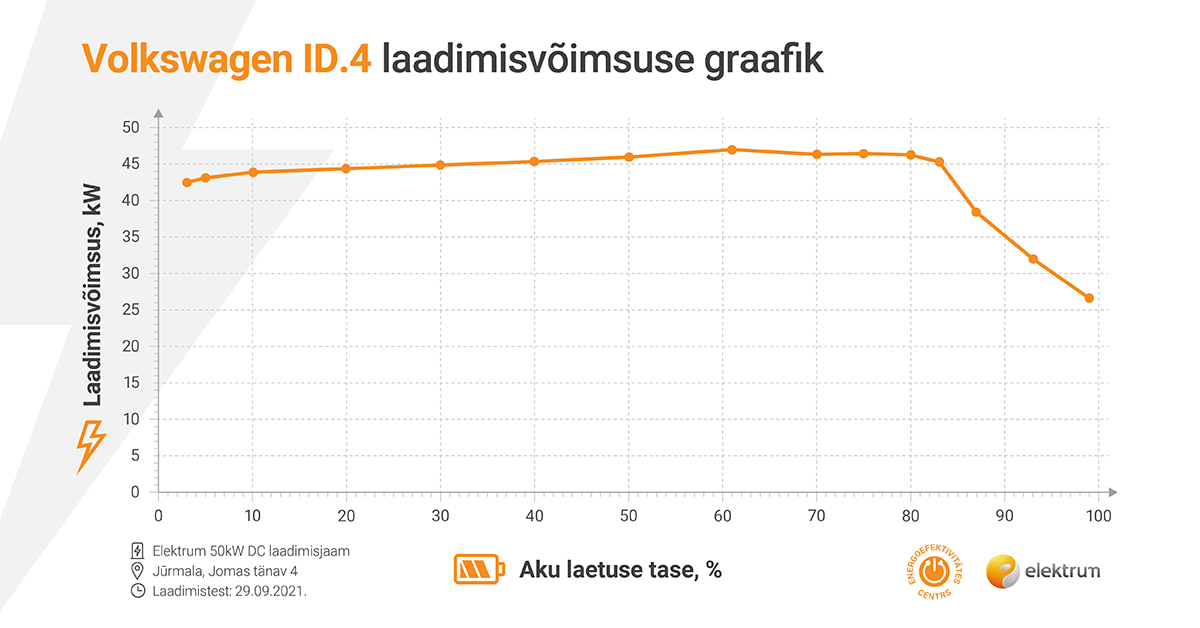

Charge curve
Map of test drive routes
Elektriautode võrdlus WLTP andmete järgi
Võrdlusarvutuses kasutatakse konkreetse elektriauto mudeli WLTP (World Harmonized Light Vehicle Testing Procedure) standardandmeid. WLTP standard on välja töötatud ülemaailmselt kogutud sõiduandmete põhjal ja hõlmab sõidusituatsioone nii linnaliikluses kui ka maanteel. Tegelik maksimaalne läbisõit, keskmine kulu ja kiirendus sõltuvad konkreetsest elektriauto mudelist ja selle konfiguratsioonist, valitud marsruudist, sõidustiilist, kliima- ja muudest tingimustest.
