Battery capacity: 54.7kWh

Renault ZOE E-Tech

Back

Battery capacity: 54.7 kWh

Battery capacity usable: 52.0 kWh

Range, km Efficiency, kWh/100km AC Charging, km/h DC Charging, km/h
Official 395 13 100
Charge Power: 22 kW AC
 230
Fastcharge Power (max): 46 kW DC
Elektrum 389
Combined (summer)
 13
Combined (summer)
 171
The data are obtained as a result of the calculation, assuming that a 10% loss occurs during the charging process.
 321
Average charging speed up to 80% at 50 kW DC charging station



Energy efficiency indicators and comparison

General information

Car Body Hatchback Acceleration 0-100 km/h 11.4 sec
Seats 3 Top Speed 135 km/h
Length 4087 mm Total Power 80 kW (109 PS)
Width 1787 mm Total Torque 225 Nm
Width with mirrors 1945 mm Weight Unladen (EU) 1577 kg
Height 1562 mm Gross Vehicle Weight (GVWR) 1988 kg
Tow Hitch No Cargo Volume 338 L
Roof Rails No Cargo Volume Max 1225 L

Maximum range, km

The maximum mileage depending on the season and mode is between 220 - 475 km

Route EV-database data Source: EV-database.org Elektrum summer test Elektrum winter test
City 310 - 475 - -
Highway 220 - 285 - -
Combined 265 - 365 389 Test data
Date: 13.07.2021.
Temperature: 28-30 ◦C
Climate: Clear, dry
Average consumption: 12.6 kWh/100km
 290 Test data
Date: 01.03.2022.
Temperature: 5 ◦C
Climate: Clear, dry
Average consumption: 15.3 kWh/100km

The table shows the maximum mileage recorded by Elektrum experts during the test run in ECO mode and using A/C in the summer season and heating in the winter season. Actual maximum mileage depends on the driving speed, route, driving style, climatic and other conditions.

Energy consumption, kWh/km

Energy consumption depending on the season and mode is between 10.9 - 23.6 kWh/100km

Route EV-database data Source: EV-database.org Elektrum summer test Elektrum winter test
City 10.9 - 16.8 13.5 Test data
Date: 12.07.2021.
Temperature: 28-30 ◦C
Climate: Clear, dry		 15.5  Test data
Date: 02.03.2022.
Temperature: 2 ◦C
Climate: Clear, dry
Highway 18.2 - 23.6 15.3 Test data
Date: 14.07.2021.
Temperature: 22-25 ◦C
Climate: Cloudy, dry 		 18.7  Test data
Date: 03.03.2022.
Temperature: 5 ◦C
Climate: Clear, dry

Combined 14.2 - 19.6 11.6 Test data
Date: 13.07.2021.
Temperature: 28-30 ◦C
Climate: Clear, dry		 15.0  Test data
Date: 01.03.2022.
Temperature: 5 ◦C
Climate: Clear, dry


Average energy consumption at constant speed  Length of the test distance: 5 kmLength of test distance: 5 km

Speed, km/h

Elektrum summer test, kWh/100km

 Elektrum winter test, kWh/100km
50 8.6 11.0
70 11.3 13.4
90 15.1 18.3

The table shows the energy consumption recorded on the electric vehicle's on-board computer during the test drive by Elektrum experts when driving in ECO mode and using A/C in the summer season and heating in the winter season. Actual energy consumption depends on the driving speed, route, driving style, climatic and other conditions.

Battery and charging

Total battery capacity

54.7 kWh

Usable battery capacity

52.0 kWh

Battery Type

Lithium-ion

 Architecture 400 V
Number of Cells 192 Bidirectional Charging (V2L) Not Available
Nominal Voltage 350 V Bidirectional Charging (V2H) Not Available
Pack Configuration 96s2p Bidirectional Charging (V2G) Not Available
Max. AC Charge Power 22 kW Max. DC Charge Power 46 kW


Information about alternating current (AC) charging types

Charging type Source: EV-database.org Charge Port Port Location Max. Power Time Rate

Wall Plug

 Type 2 Front Side - Middle 2.3 kW 26 hours 45 minutes 12 km/h

1-phase 16A

 3.7 kW 16 hours 45 minutes 19 km/h

1-phase 32A

 7.4 kW 8 hours 30 minutes 37 km/h

3-phase 16A

 11 kW

5 hours 45 minutes

 55 km/h

3-phase 32A

 22 kW* 3 hours 100 km/h

* Elektrum experts recommend: the most suitable home charger for this car from Elektrumveikals.lv: ABB Terra, 22 kW Reminder: the charger is a serious consumer of electricity – make sure the housing is suitable for charging. If necessary, apply for a consultation!



Information about direct current (DC) charging

Charging Point Source: EV-database.org Charge Port Port Location Max. Power Maximum power provided by charge point. Avg. Power Average power provided by charge point over a session from 10% to 80%. Charge Time Time needed to charge from 10% to 80%. Charge Speed Average charging speed over a session from 10% to 80%.
50 kW DC CCS Front Side - Middle 46 kW 41 kW 56 minutes 230 km/h
175 kW DC 46 kW 41 kW 56 minutes 430 km/h

Elektrum Drive direct current (DC) charge test:

Parameters 50kW DC charging The charging data shown in the table were obtained at the ElektrumDrive 50 kW DC charging station in Jūrmala, 4 Jomas Street. The calculations assume an average consumption of 12.6 kWh/100 km obtained during the Elektrum combined mode test drive.
Average charging speed up to 80% 321 km/h
Average charging power (5%-80%) 38 kW
Time to charge for 100 km 19 minutes
Charging time (5->50%) 34 minutes
Charging time (5->70%) 51 minutes
Charging time (5->80%) 1 hours
Charging time (5->90%) 1 hours 12 minutes
Charging time (5->95%) 1 hours 18 minutes

Actual charging data depends on the capacity available at the station and the specifications of the electric vehicle’s built-in battery - mainly the capacity and temperature during charging.

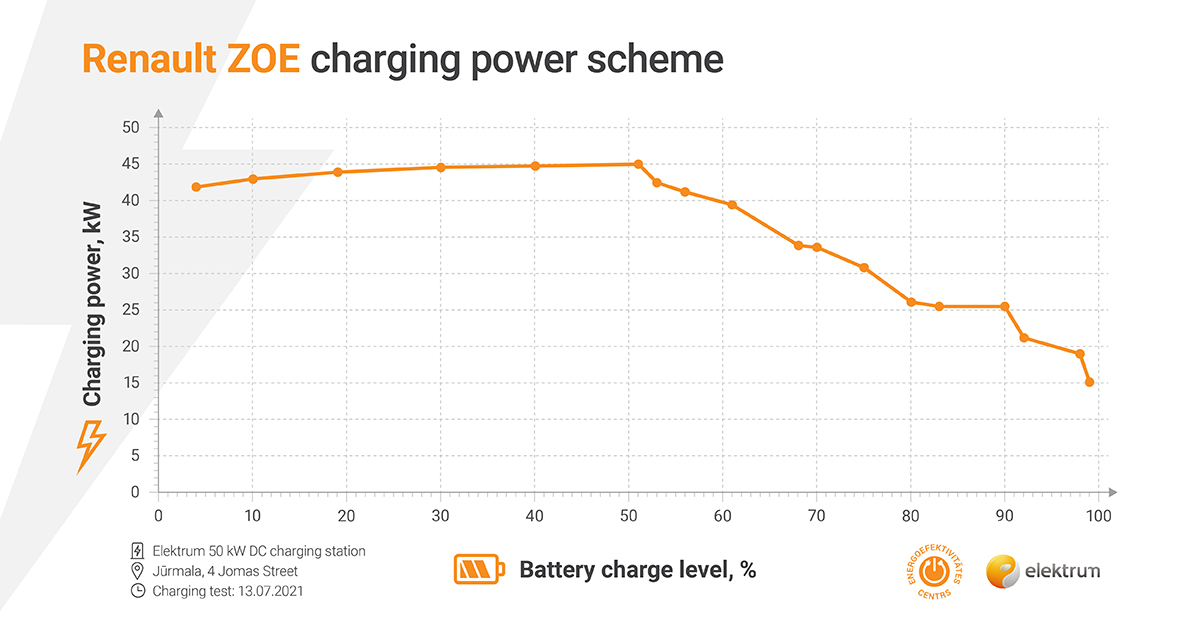

Charge curve

Map of test drive routes

Comparison of electric vehicles according to WLTP data

The WLTP (Worldwide Harmonised Light Vehicles Test Procedure) standard data for the specific model of the electric vehicle is used in the comparison calculation. The WLTP standard is based on worldwide driving data and includes driving situations in both urban and highway traffic. Actual maximum mileage, average consumption and acceleration depend on the specific model of electric vehicle and its equipment, chosen route, driving style, climatic and other conditions.
